Description

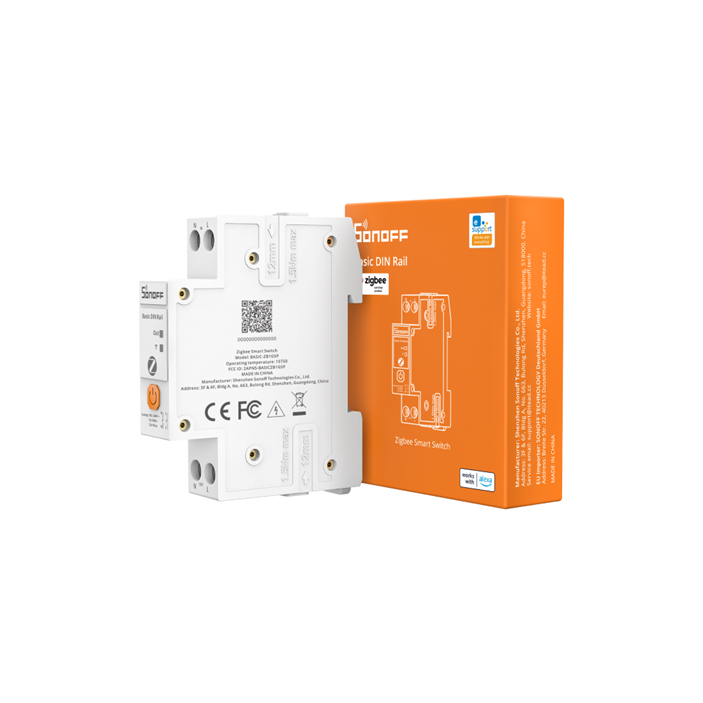

Sonoff 32 Amp Din Switch (Zigbee)
A DIN rail-mounted Zigbee switch built for high-power circuits, giving you smart control and real-time energy monitoring for heavy-duty appliances. Handles up to 32A with double-pole safety switching and full overload protection.
Installs directly onto standard DIN rails in your distribution box with no drilling or modification required. Track voltage, current, power, and energy usage in real time, with data export to help manage consumption and reduce bills. Built-in overload, overcurrent, and overvoltage protection automatically cuts power when custom thresholds are exceeded, and the double-pole design isolates both live and neutral for added safety.
Requires a Sonoff Zigbee Bridge for connectivity (sold separately).
Note: As this device is typically installed inside a metal DB board, signal range may be reduced due to shielding.
Note: Must be instaled by a certified Electrician.
Awaiting NRCS Approval
Specifications
- Product Name: Sonoff 32 Amp Din Switch (Zigbee)
- Product Series: Basic Series
- Product Type: Zigbee Smart Switch
- Model: BASIC-ZB1GSP
- Rating: 100-240V~ 50/60Hz, 32A Max
- Max Load: 7680W
- Max Current: 32A
- Wireless Connectivity: Zigbee 3.0
- Net Weight: 93.5g
- Product Dimensions: 84 x 66.5 x 18mm
- Colour: White
- Casing Material: PC (polycarbonate)
- Recommended Wire Gauge Range: 11 AWG to 6 AWG (4mm² to 10mm²) SOL/STR copper conductors only
- Applicable Place: Indoor
- Operating Temperature: -15°C ~ 50°C
- Operating Humidity: 10%-90% RH, non-condensing
- Certification: CE / RoHS / FCC / CP65 / Zigbee 3.0 / WWA
- Gateway Requirement: Requires Zigbee 3.0 gateway (sold separately)
